Makino A500Z

5 axis horizontal machining center

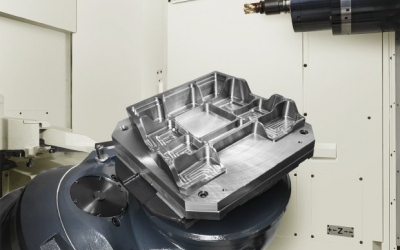

Makino A500Z 5 axis horizontal machining center

Since November 2021, we have expanded our machine portfolio with a 5-axis Makino A500Z horizontal machining center. High productivity and accuracy of manufactured parts is ensured by a two-pallet system, a unique tilting table, exceptional rigidity of the machine, HSK-A63 clamping, high speed spindle (14,000 rpm), rapid traverses (60,000 mm/min), or high pressure cooling (30 bar).

Key features:

  • The highest level of productivity thanks to the two-pallet system
  • Rotary axes with very high accuracy
  • Unique kinematics of the machine offering very high rigidity of the machine
  • Versatile machine for efficient series production

Examples of production:

  • hydraulic blocks and parts
  • more challenging steel parts with a higher removal of material
  • aluminum housing and flat parts in larger series
  • high-end prismatic parts
  • more demanding castings

Technical data:

Makino A500Z

X-axis travel 730 mm
Y-axis travel 750 mm
Z-axis travel 500 mm
Table dimensions 500 x 500 mm
Max. table load 400 kg
Spindle RPM 14 000 rpm
Rapid traverse 60 000 mm/min
Max no. of tools 60
Cooling 30 bar

Are you interested in CNC production?

Would you like to get more information or a price offer on your specific part? Please contact us on our phone or email. We will get back to you as soon as possible!

info@ekvitatu.cz +420 499 859 640
